View Scenario Description

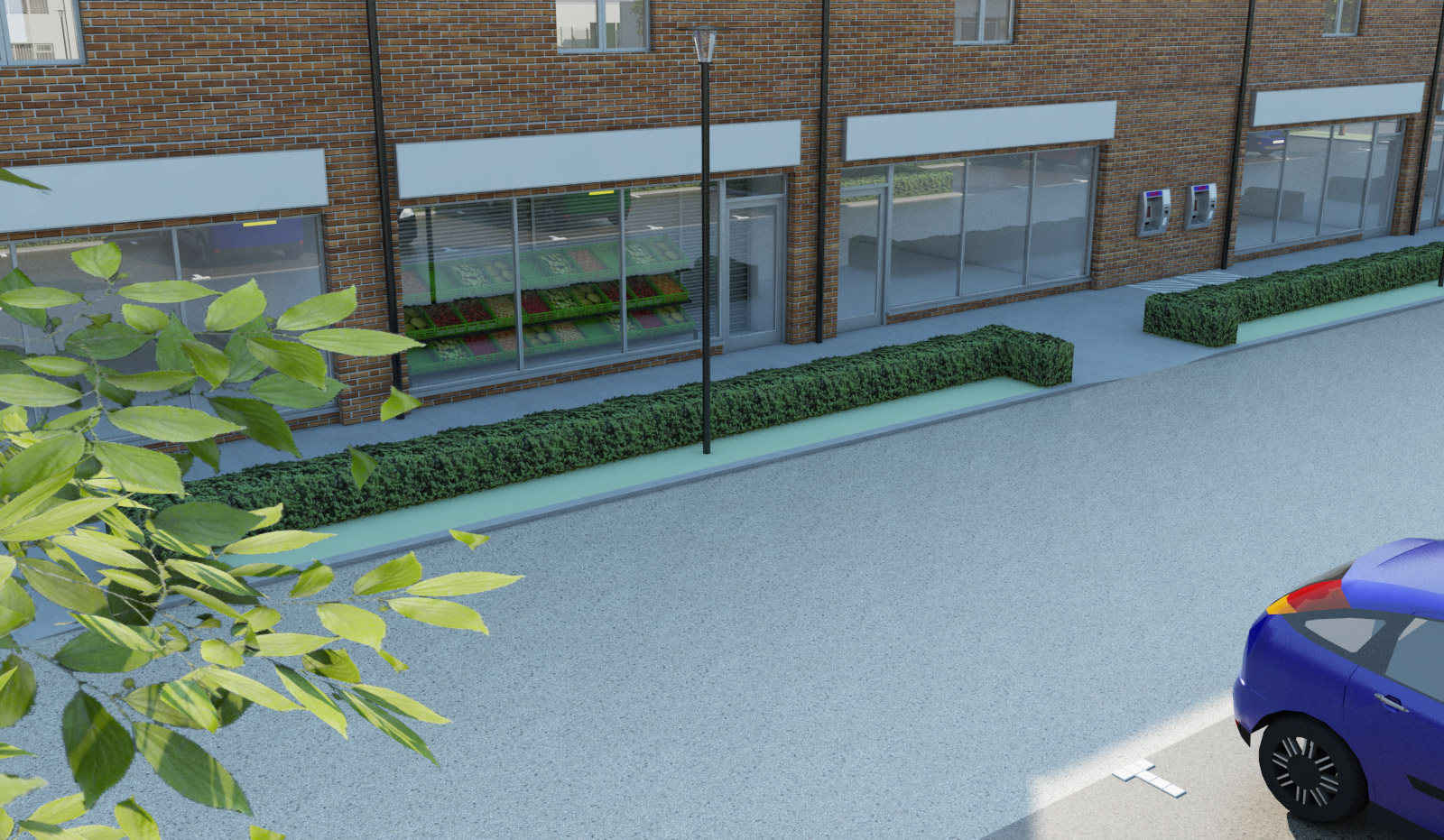

The retail unit frontages are protected by the installation of windows that are certificated to one of the following standards: • PAS 24 • STS 202 • STS 204 • LPS 1175 The selected standard is dictated by retail use and location, i.e. PAS 24/STS 204 window may be appropriate for a low risk/low crime area, whereas STS 202/LPS 1175 may be appropriate for a high risk or very high crime area.

Entrance and exit doors installed on the development will all be certificated to one of the following standards: • PAS 24 • STS 201 • STS 202 BR2 • LPS 1175 SR2 These are the minimum required standards.

Doorways are recessed no more than 600mm.
Close
Poor Design Example
View SDB Design Example

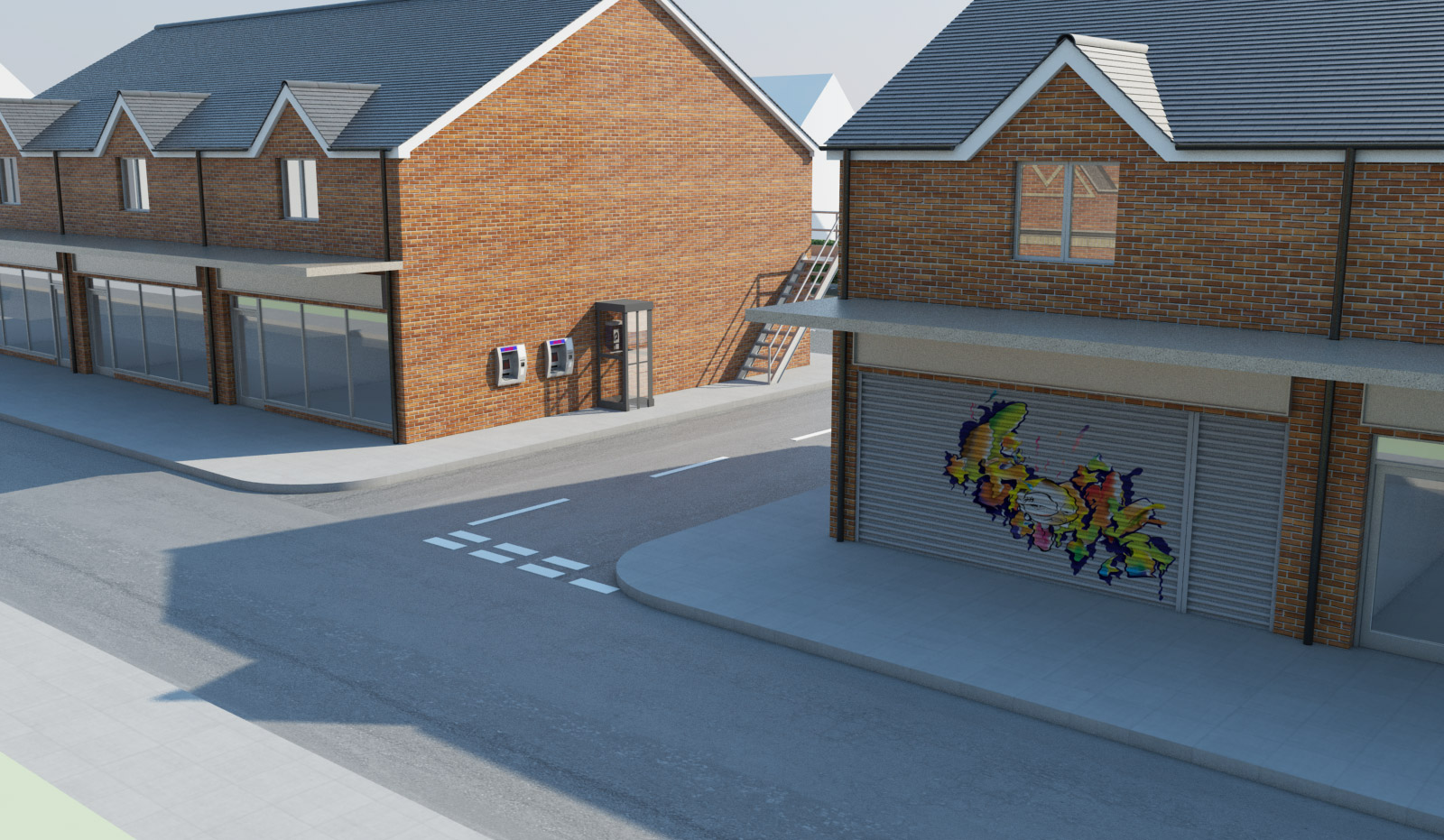

Solid shutters create dead frontages, attract grafitti and prevent viewing of shop interior.

Close

ATM’s are on a narrow pavement with no privacy space, no privacy zone marking in a less observed area and with opportunity for ambush around the corner or from telephone kiosk.

Close

Shelter provided by canopy encourages persons to congregate which can intimidate customers.
